EAGLE Hydraulic Toe Jacks (Low Profile) – Made in Japan

Konno Corporation

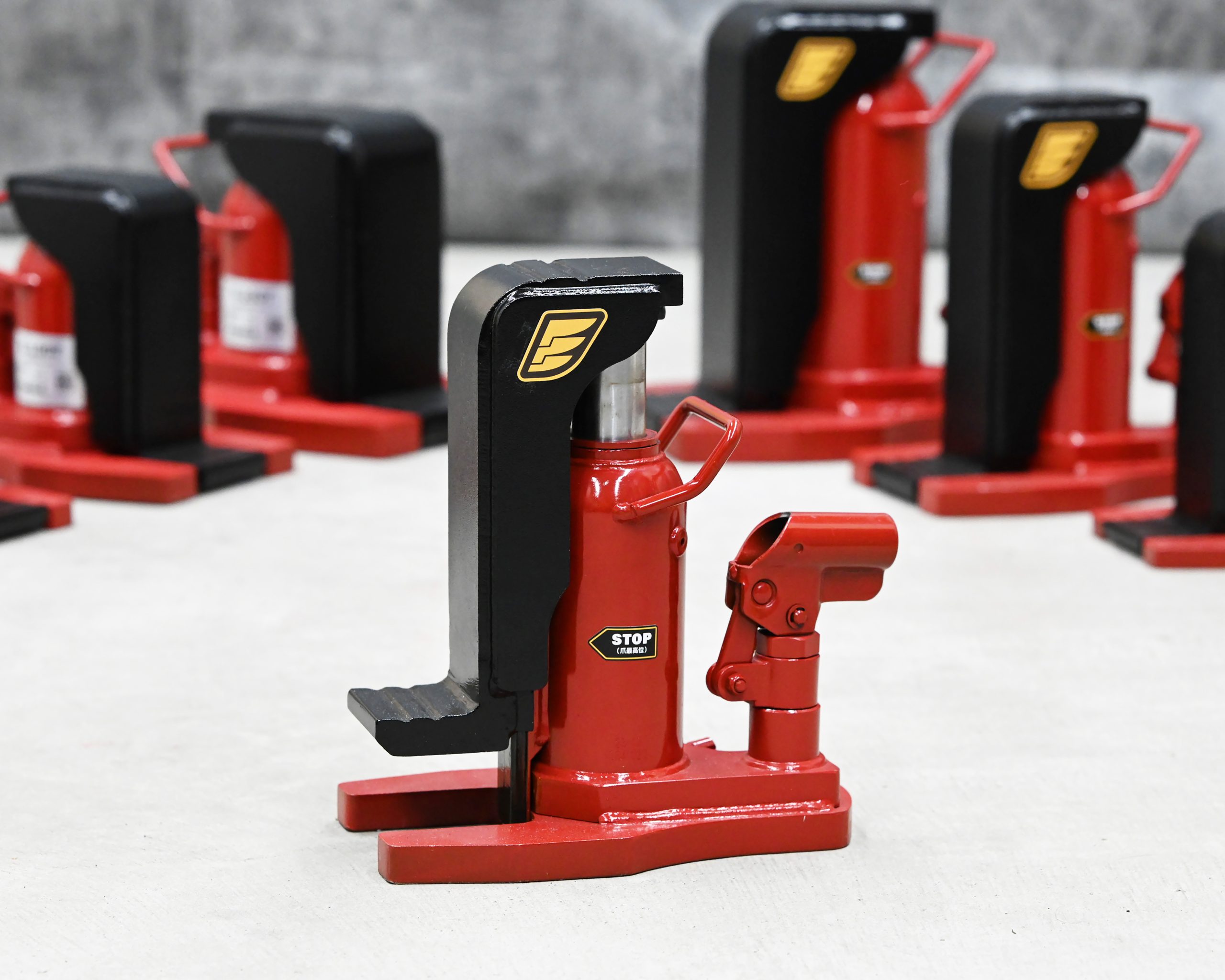

EAGLE Toe Jacks

EAGLE Toe Jacks

What Is a Hydraulic Toe Jack? (12–32 mm Clearance)

EAGLE hydraulic toe jacks are low-profile industrial lifting jacks designed to lift and position heavy machinery from minimal clearances (approx. 12–32 mm). They are widely used for machinery moving, equipment lifting, and rigging / millwright work where stable, controlled lifting is required. Made in Japan for reliable performance in industrial environments.

A toe jack is a hydraulic bottle jack with a low-profile toe that allows lifting when there is very little clearance under the load. Use the toe lift to start lifting heavy equipment from tight gaps, then position or support the load safely.

EAGLE products include machinery toe jack options such as a low profile toe jack, industrial toe jack, and heavy duty toe jack models for demanding worksites.

We have a proven track record of over 10,000 projects, serving clients both in Japan and worldwide as a trusted partner. If you are interested, please feel free to contact us.

CONTACT

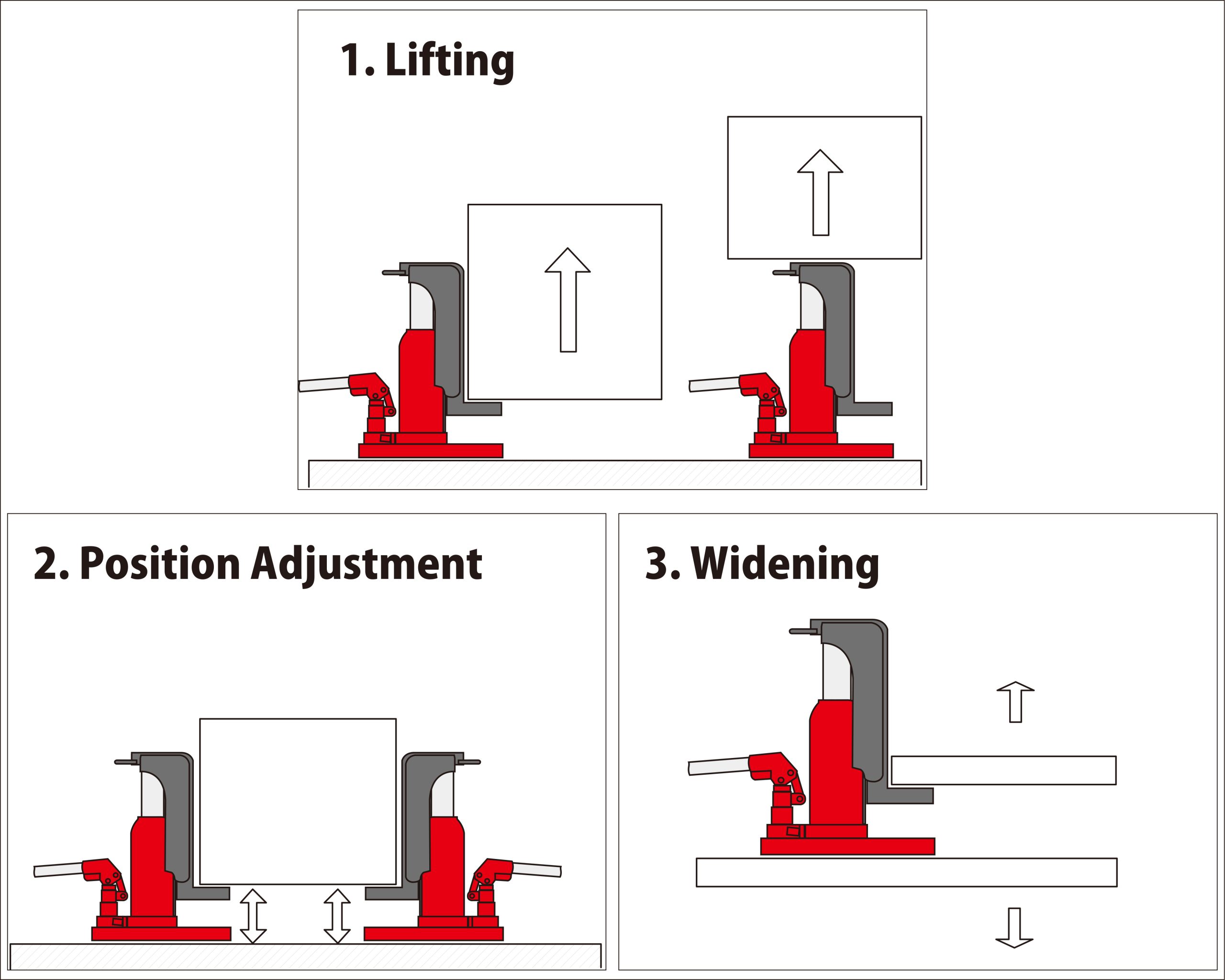

Three Basic Functions of Toe Jacks

Three Basic Functions of Toe Jacks

Three Basic Functions of Toe Jacks

EAGLE Toe Jacks are engineered for accuracy, safety, and versatility when handling heavy machinery. This innovative design empowers operators to work more efficiently, making them indispensable tools for any installation, maintenance, or relocation task. Here are three core functions that highlight their on-site versatility:

【1. Lifting】
The ability to lift from both the toe and the head provides twice the versatility of conventional jacks, adapting to various situations.

【2. Precision Adjustments】
The EAGLE toe jack allows for millimeter-level adjustments, perfect for critical tasks like leveling heavy equipment.

【3. Spreading (Widening)】
By positioning the base and toe strategically, the jack can be used to safely widen the gap between two objects.

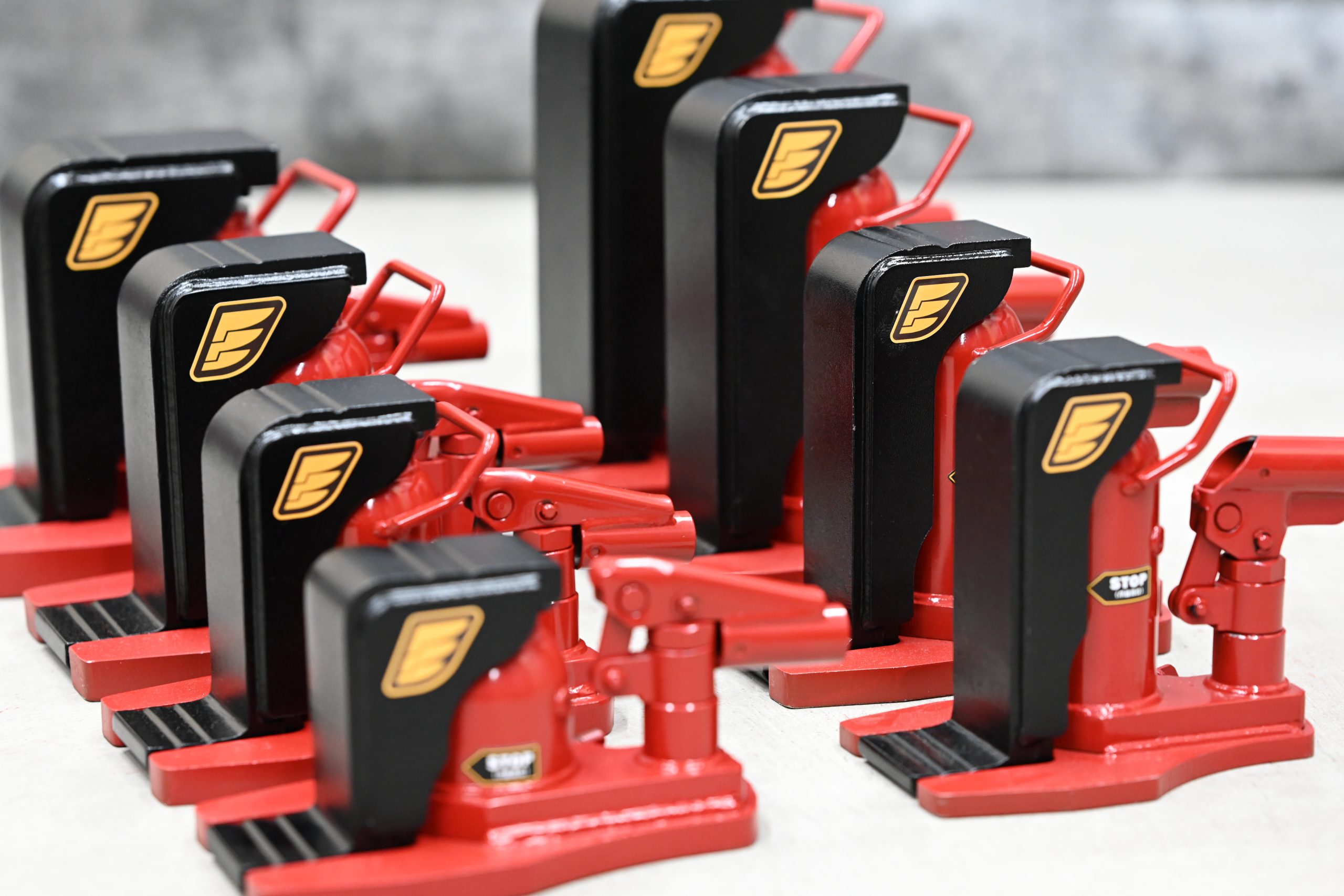

Standard E Series

Standard E Series

EAGLE E Series Toe Jacks: Models & Options

The EAGLE E Series offers a total of 21 models to match your heavy equipment handling needs, combining toe capacities from 1 to 10 tons with various body heights and toe lengths. You can select the optimal model based on required capacity, stroke, toe height, and working space.

Designed for industrial safety, these jacks support precise positioning and help reduce operational risks. Whether using the toe or head lift points, our rigorous quality control and stable structural design ensure safe lifting procedures. By choosing the right model for your stroke and capacity requirements, you ensure maximum safety during rigging and installation work.

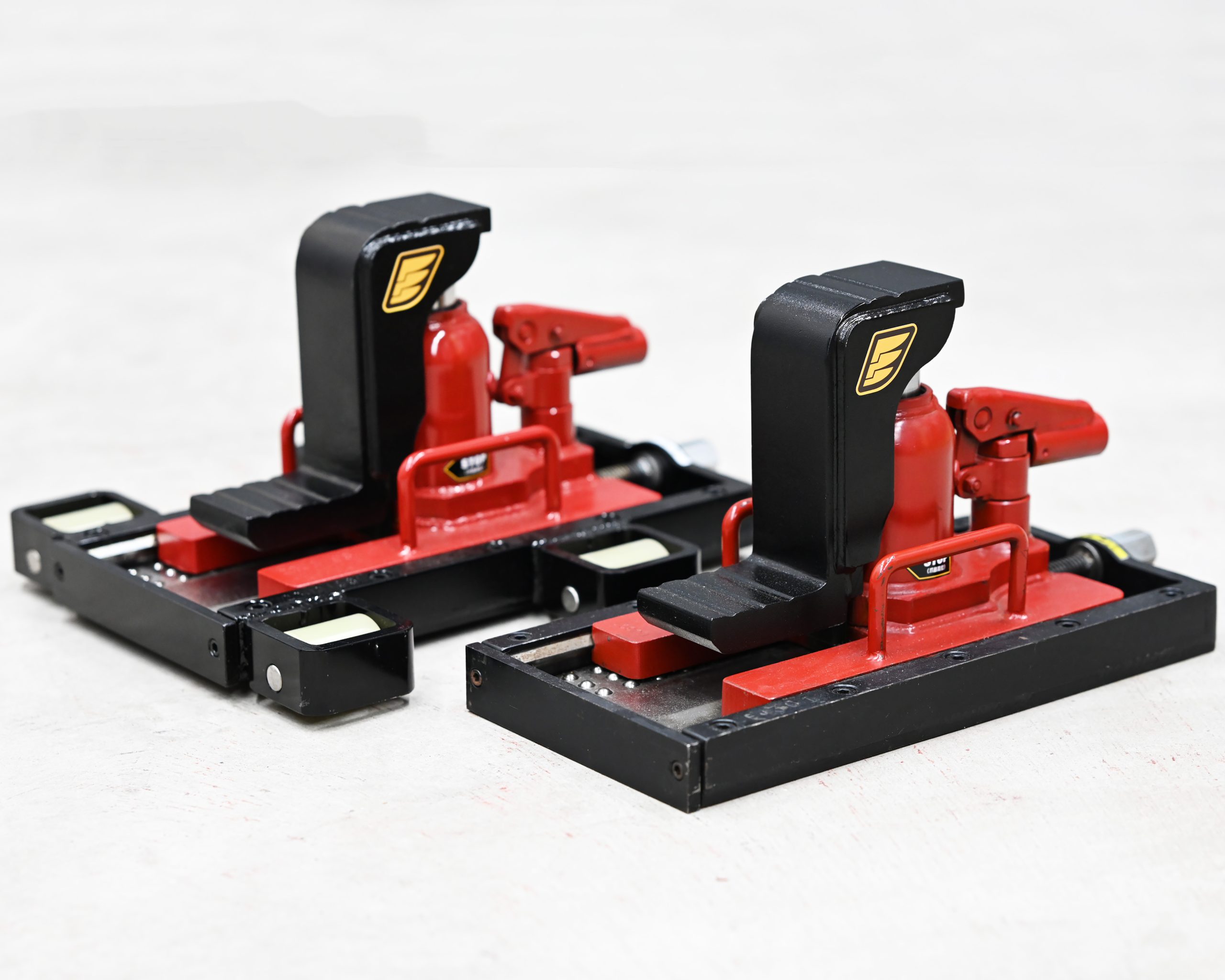

X Series – Transfer Table Type

X Series – Transfer Table Type

Safe, Controlled Lifting & Precise Positioning

Transfer-Table toe jacks mount the jack on a ball-transfer platform and use a screw feed for smooth sliding. This enables fine positioning while the load remains on the toe, improving efficiency for alignment and assembly.

EAGLE toe jacks support controlled lifting for precise positioning, helping reduce risk during machinery moving and installation work.

Superior Quality Through Japanese Manufacturing Excellence

For main parts that require full strength, EAGLE adopts Japan’s renowned highest-quality steel. Furthermore, our highly skilled staff achieve top quality in parts processing and welding through the expert operation of robots and NC machines.

By leveraging Japan’s "Monozukuri (high-quality product manufacturing)" concept, combining manufacturing technology, technician skills, and quality control, EAGLE provides products with superior cost-performance and reliability.
